In modern electrical systems, safety and reliability are paramount. Choosing the right circuit protection device is critical to ensuring operational efficiency and safeguarding infrastructure. Among the most commonly used options are the Molded Case Circuit Breaker (MCCB) and the Miniature Circuit Breaker (MCB). While they serve similar functions—interrupting the current flow in abnormal conditions—their differences in capability, application, and design are significant. So, how do you decide which is right for your project?
This article offers an in-depth comparison of MCCBs and MCBs, examining their characteristics, performance parameters, and optimal use cases. We’ll also address frequently asked questions, provide a comparison table, and help you make an informed decision for your specific application.

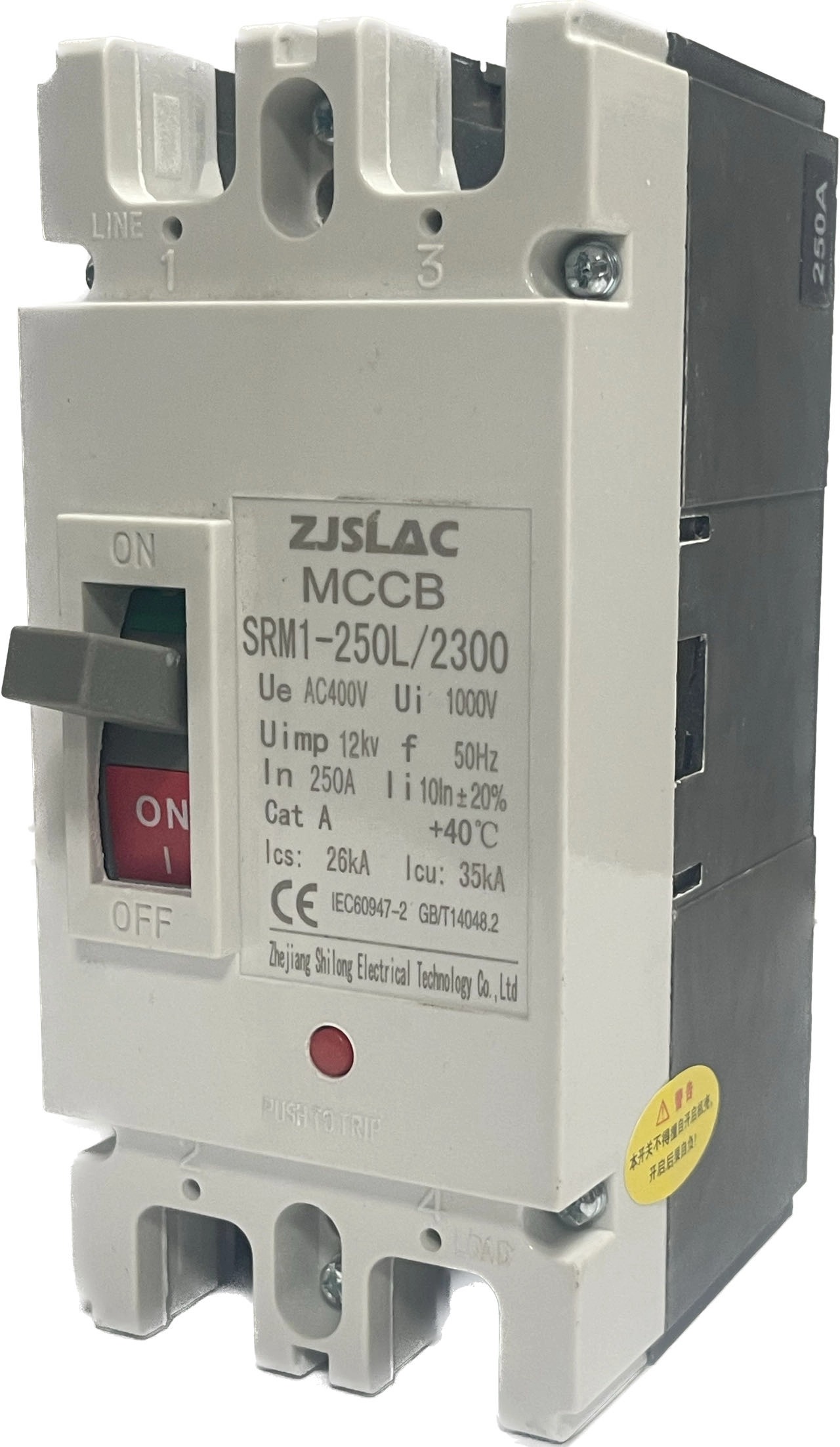

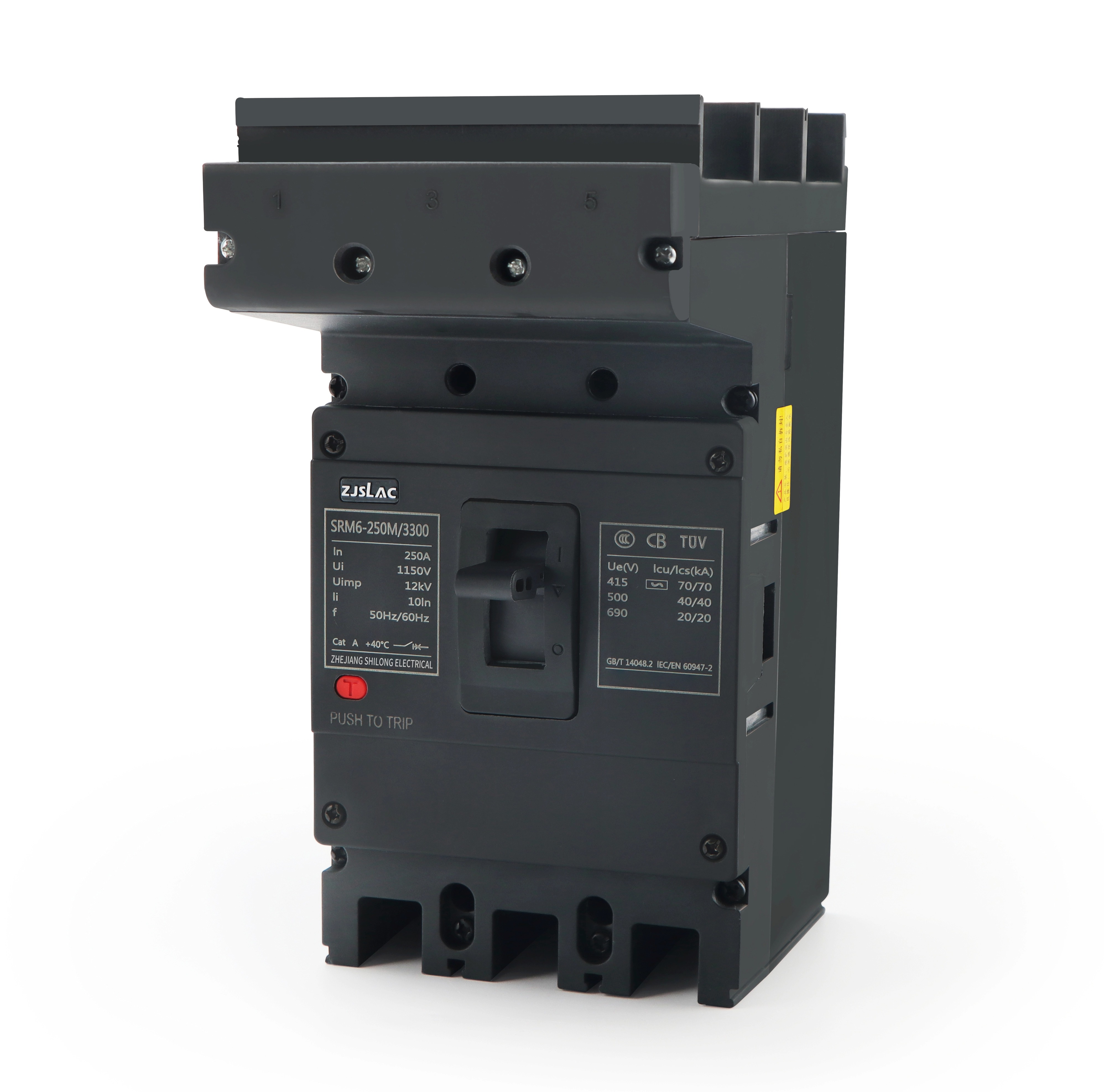

A Molded Case Circuit Breaker (MCCB) is a type of electrical protection device that can handle higher current ratings and a broader range of voltages. Typically used in industrial or large-scale commercial environments, MCCBs provide protection against overloads, short circuits, and sometimes even ground faults. The term "molded case" refers to the tough plastic casing that encloses the internal components, ensuring safety and durability under harsh conditions.
Current ratings: Ranges from 100 A up to 2500 A or more.
Adjustable trip settings: Allows customization to suit specific load requirements.
Thermal-magnetic or electronic trip units: Offers flexibility and enhanced protection.
High interrupting capacity: Suitable for circuits where fault currents can be high.
Robust construction: Designed to withstand high mechanical and thermal stresses.
MCCBs are typically found in power distribution boards, industrial control panels, and generator protection systems. Due to their wide adjustability and high breaking capacity, they are ideal for demanding environments.
In contrast, a Miniature Circuit Breaker (MCB) is a compact device designed for low-current applications, such as residential and light commercial installations. These breakers protect circuits from overloads and short circuits but operate at much lower current and voltage ranges compared to MCCBs.
Current ratings: Typically from 0.5 A to 125 A.
Fixed trip settings: No manual adjustment available.
Compact design: Fits easily into household or small commercial panels.
Lower breaking capacity: Suitable for systems with limited fault currents.
Cost-effective: Less expensive than MCCBs for low-load scenarios.
MCBs are commonly installed in lighting circuits, plug points, and low-load electrical appliances. They are user-friendly, maintenance-free, and provide quick response during faults.
To clearly visualize the differences between MCCBs and MCBs, here’s a direct comparison based on critical parameters:
| Feature | MCCB (Molded Case Circuit Breaker) | MCB (Miniature Circuit Breaker) |
|---|---|---|
| Current Rating | 100 A – 2500 A | 0.5 A – 125 A |
| Trip Settings | Adjustable | Fixed |
| Interrupting Capacity | High (up to 100 kA) | Low to moderate (up to 10 kA) |
| Application | Industrial, commercial | Residential, small commercial |
| Size | Larger | Compact |
| Cost | Higher | Lower |
| Trip Technology | Thermal-magnetic / Electronic | Thermal-magnetic |
| Reset Type | Manual or automatic | Manual |
| Protection Scope | Overload, short circuit, ground fault (in some cases) | Overload and short circuit only |
Understanding these distinctions is crucial to selecting the appropriate breaker for your application. Now let’s delve into practical scenarios to determine which type is best for your specific needs.
If your project involves high power distribution, motor protection, or industrial automation systems, an MCCB is almost always the superior choice. Its versatility and adaptability make it indispensable for environments where load conditions can vary and where precise trip settings are necessary to protect valuable equipment.
Factories and production lines with heavy-duty machinery.
Commercial buildings where loads fluctuate across different areas.
Renewable energy systems (e.g., solar farms) with high DC currents.
Data centers with complex power needs and sensitive equipment.
Main distribution panels in large infrastructures.
MCCBs also allow selectivity and coordination, which are critical in tiered power systems. In large-scale electrical networks, it is essential to ensure that only the faulty section is disconnected, leaving the rest of the system operational—a feature MCCBs excel at.
Moreover, MCCBs can be retrofitted with accessories such as shunt trips, undervoltage releases, and auxiliary contacts to enhance functionality and integrate with automation systems.
For simpler, lower-load environments, MCBs provide an excellent balance of safety, convenience, and affordability. They are best suited for household and small office settings where fault currents are relatively low and space constraints are a concern.
Residential buildings – circuit protection for lights, fans, sockets.
Retail outlets – powering cash registers, lights, and small appliances.
Small office setups – protecting workstations, ACs, and lighting systems.
Educational institutions – classrooms, labs, and general-use areas.
Sub-circuits – acting as individual protections under a main breaker.
One of the strongest advantages of MCBs is their plug-and-play capability. Their compact size and DIN-rail mounting compatibility make installation quick and easy. Also, they require minimal maintenance and are easily replaceable.
MCBs also offer rapid disconnection during faults, minimizing the chances of damage to downstream devices. However, they do not provide the customization or broader protective features of MCCBs, which makes them unsuitable for high-power applications.
Choosing between an MCCB and an MCB shouldn’t be based solely on cost or familiarity. There are specific factors you should evaluate:
If your electrical setup involves large motors, heating elements, or heavy-duty equipment, MCCBs are the logical choice. For standard lighting and electronic appliances, MCBs are adequate.
MCCBs are bulkier and may require more space in your control panel. In contrast, MCBs are compact and better suited for space-constrained applications.
High fault current levels demand high interrupting capacity. If your system is likely to experience such events, MCCBs provide better safety assurance.
For systems that will grow or evolve over time, MCCBs offer greater flexibility through adjustable settings and accessory compatibility.
MCBs are typically less expensive and thus more suitable for budget-sensitive projects. However, compromising on safety for cost is never advisable, especially in industrial environments.
It depends on the panel size and load requirement. MCCBs require more space and handle higher currents. Ensure that your panel and wiring are compatible before replacement.
Not necessarily. Both use thermal-magnetic trip mechanisms, but MCCBs offer adjustable settings, allowing for more precise protection tuning.
Both are safe within their intended range of application. MCCBs are safer in high-load environments due to higher interrupting capacity and thermal endurance.
MCCBs have a long lifespan, often up to 20 years with regular maintenance. Their components are designed for durability under frequent operation.
Only in sub-circuits or small auxiliary loads. For primary protection in industrial setups, MCCBs are more appropriate.
Both MCCBs and MCBs are vital components in electrical distribution systems, each with distinct advantages. Your selection should be driven by load demand, safety requirements, space constraints, and future scalability.
Choose an MCCB if your project involves high currents, industrial settings, or customizable protection needs.
Opt for an MCB for residential or low-load commercial circuits, where simplicity, cost, and compact size are priorities.
Understanding the differences and assessing your unique requirements will help you make the right decision, ensuring optimal performance and long-term safety for your project.
