In today’s highly automated and power-intensive industrial landscape, ensuring the continuous and safe operation of electrical systems is not optional—it’s essential. Electrical equipment failures or overloads can result in costly downtimes, fires, and even serious injury. That's where Molded Case Circuit Breakers (MCCBs) come into play. As an advanced type of circuit breaker, MCCBs are designed to handle high current loads with precision, offering the industrial sector an ideal solution for protection, scalability, and operational reliability.
Unlike miniature circuit breakers (MCBs) designed for low-energy residential use, MCCBs serve more demanding environments such as factories, manufacturing units, refineries, and power plants. Let’s explore why MCCBs are the backbone of modern industrial safety infrastructure and how they contribute to a scalable and dependable electrical ecosystem.

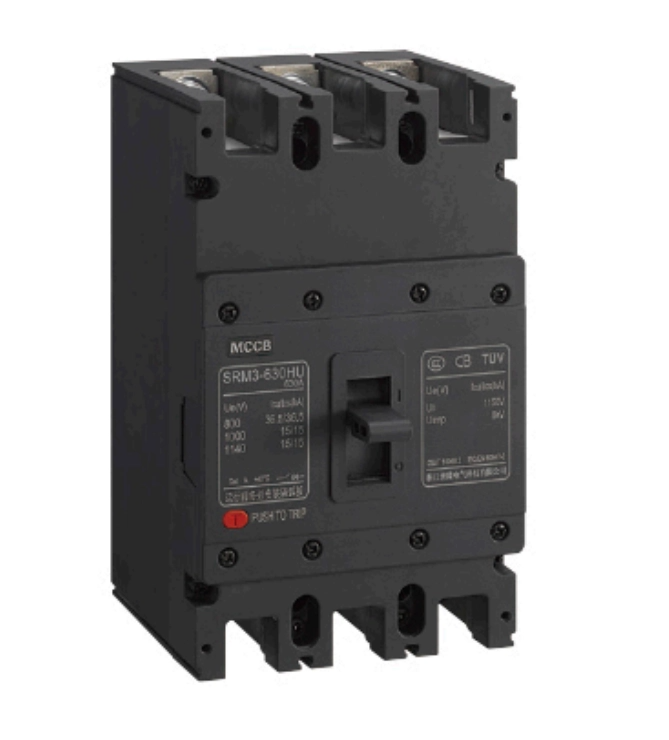

At its core, an MCCB is an electrical protection device used to protect an electrical circuit from overcurrent, which can cause short circuits or equipment overloads. These devices are particularly crucial in scenarios where current ratings exceed the capacity of smaller breakers like MCBs.
Current ratings ranging from 63A to 1600A or more
Adjustable trip settings for overload and short circuit
Thermal-magnetic trip units or electronic trip units for precise operation
Manual or automatic reset mechanisms
High breaking capacity, making it suitable for industrial short-circuit protection
The MCCB achieves this by interrupting current flow after detecting a fault using either thermal elements (for overload protection) or magnetic elements (for short circuit protection). This dual mechanism ensures that different types of faults are mitigated effectively and swiftly.
Industrial environments often require customizable protection, and MCCBs provide the ability to fine-tune the tripping threshold based on load characteristics, ensuring application-specific safety and system longevity.
One of the most pressing concerns in any industrial facility is the risk of electrical accidents. Uncontrolled current surges can lead to overheating, fires, or complete system breakdowns. MCCBs offer layered protection by combining overload and short circuit protection within a single device. Their quick response to electrical faults significantly reduces the risk of injury to personnel and prevents damage to machinery.
Unlike simpler breakers, MCCBs come equipped with arc extinguishing chambers, mechanical interlocks, and isolators that enhance the device’s safety features. These additions are essential in high-voltage environments where energy dissipation must be handled efficiently and safely.
Additionally, the ability to remotely monitor and trip MCCBs using smart control systems ensures that human operators are not exposed to potentially hazardous conditions when attempting manual intervention.
| Feature | Benefit |
|---|---|
| Adjustable trip units | Custom protection settings for different machines |
| High breaking capacity | Handles significant fault currents safely |
| Arc extinguishing | Prevents fire and explosion during disconnection |
| Mechanical isolation | Ensures safe maintenance and prevents accidental re-energizing |
The reliability of MCCBs under extreme fault conditions ensures that industries can maintain a safer working environment, which is not just a regulatory requirement but also a business-critical priority.
Industrial systems are rarely static. As production expands or more machinery is added to a facility, electrical loads increase, requiring a system that is flexible enough to grow. MCCBs offer exceptional scalability, allowing facility managers to upgrade protection capacities without overhauling the entire system.
With current ratings that range into the thousands of amperes, MCCBs can be tailored to protect individual machines, entire panel boards, or distributed sub-systems across large facilities. The ability to install MCCBs in modular panels enables businesses to expand their electrical infrastructure efficiently.
Moreover, MCCBs can be integrated with motor protection systems, transformer circuits, and generator setups, enabling centralized protection in complex environments.
Modular design supports panel integration
Wide range of current ratings from 63A to over 1600A
Adjustable trip characteristics allow protection tuning
Suitable for retrofit and new installations alike
By using MCCBs, industries can maintain system integrity even during major expansions, reducing both downtime and capital investment.
Industrial settings are often exposed to dust, humidity, high temperature, and electrical noise. MCCBs are engineered to function reliably in such harsh conditions. They are built with durable molded cases, which protect the internal mechanism from environmental wear and mechanical impact.
These devices also undergo extensive compliance testing (e.g., IEC 60947-2 standards) to ensure they meet the highest benchmarks for reliability and performance. MCCBs maintain their operational integrity even after numerous fault interruptions, making them indispensable in mission-critical applications like petrochemical plants, food processing lines, and data centers.
In environments where power availability is paramount, such as manufacturing lines operating 24/7, the consistent performance of MCCBs ensures that unexpected failures are minimized, and any maintenance activities can be performed safely and efficiently.
MCCBs are used across a variety of industrial sectors where high-capacity protection is essential. Below are some of the most common applications:
Electric motors are the heart of most manufacturing lines. MCCBs with motor protection characteristics prevent overcurrent and phase loss conditions, thereby extending the motor’s operational life.
MCCBs provide backup protection for industrial generators, especially in scenarios where power demand surges during peak operational hours.
To prevent transformer overheating and short circuits, MCCBs are deployed as upstream protection units, safeguarding both primary and secondary circuits.
Feeder circuits carry power from a distribution board to various parts of an industrial plant. MCCBs ensure these circuits are protected from faults that can disrupt operations across multiple departments.
Control panels often house multiple MCCBs in a structured layout, each responsible for protecting specific segments of the plant, ensuring localized control and simplified maintenance.
| Industrial Application | MCCB Role |
|---|---|
| Motor Control Centers | Prevents overloads and phase failures |
| Generator Systems | Manages load fluctuations and short circuits |
| Distribution Panels | Protects multiple feeder lines |
| Transformer Units | Prevents winding damage from faults |
| Process Automation Systems | Maintains uninterrupted power to control circuits |

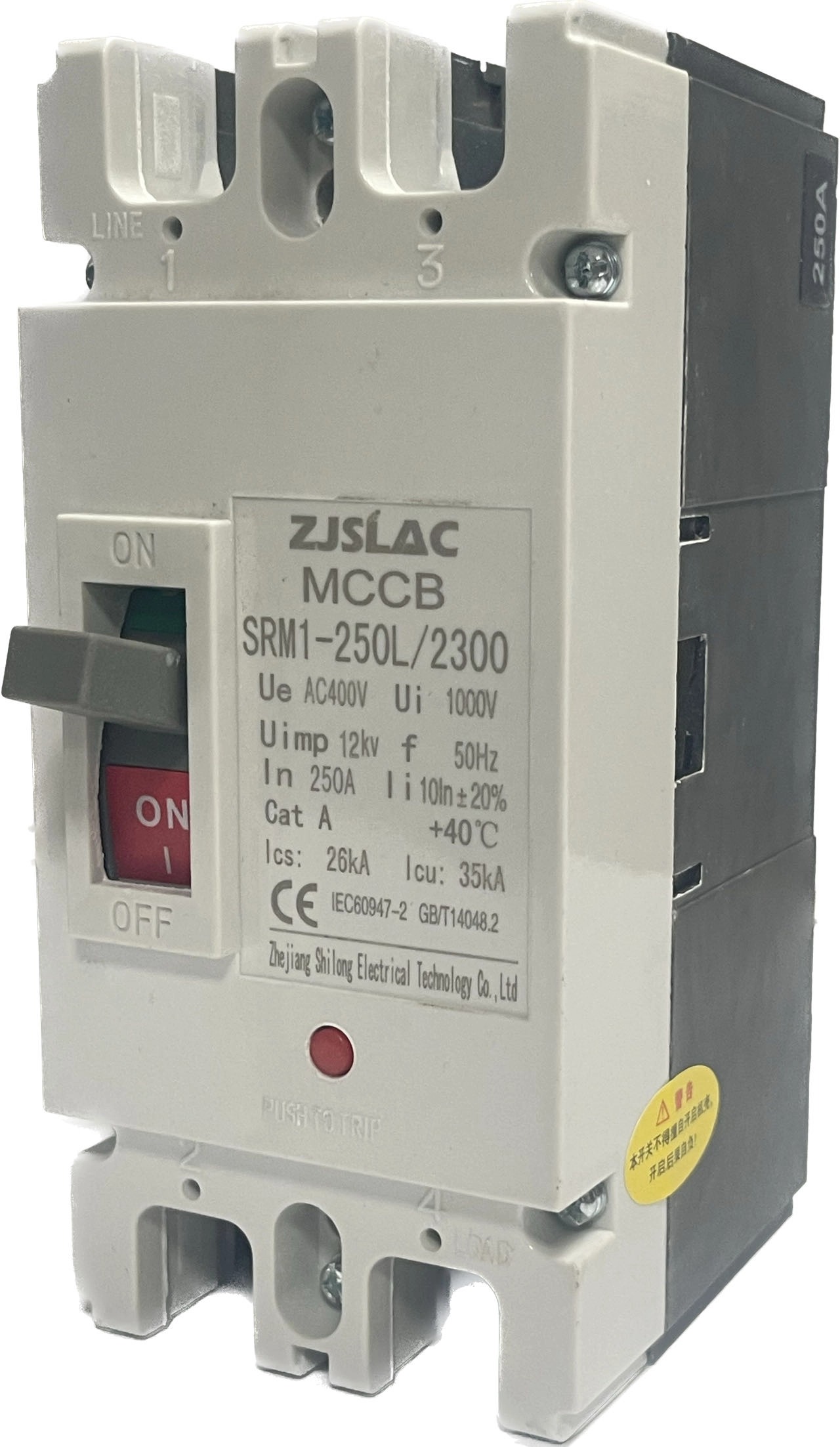

While MCBs are suitable for residential and light commercial applications (typically up to 100A), MCCBs are designed for higher current ratings, typically from 63A to 1600A or more, with adjustable trip settings and higher breaking capacity, making them more robust and reliable for industrial use.
Yes, MCCBs are often used in low-voltage power distribution systems within industrial environments. They offer better protection features compared to MCBs, especially where heavy loads or motor control is involved.
Absolutely. MCCBs are now commonly used in solar PV systems, wind turbine arrays, and battery storage systems. Their ability to handle fluctuating loads and harsh conditions makes them ideal for such installations.
Key factors to consider include:
Current rating and breaking capacity
Adjustability of trip settings
Number of poles (2P, 3P, or 4P)
Operating environment (temperature, dust, humidity)
It is recommended to consult a certified electrical engineer or refer to product specifications from professional manufacturers to match your system needs accurately.
When evaluating components for industrial electrical systems, MCCBs stand out as a critical investment. Their combination of robust safety features, adaptable scalability, and unmatched reliability makes them indispensable in maintaining operational continuity and compliance in industrial environments.
By incorporating MCCBs into your power management infrastructure, you’re not just preventing electrical faults—you’re investing in the longevity, safety, and performance of your entire operation. Whether you’re scaling up, modernizing, or simply ensuring your current systems are well-protected, MCCBs provide the industrial-grade protection your facility deserves.
