In modern electrical networks, the Molded Case Circuit Breaker (MCCB) plays a pivotal role in ensuring electrical safety, protecting systems from overloads, short circuits, and even ground faults. But what exactly is an MCCB, and under what circumstances should you consider using it in your power distribution system? Understanding its core functions, features, and best-use scenarios will empower engineers, facility managers, and electricians to make informed decisions that enhance operational safety and efficiency.

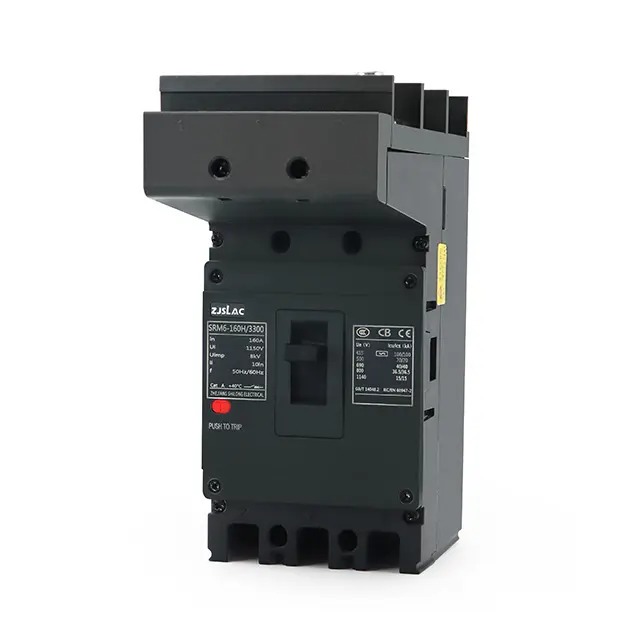

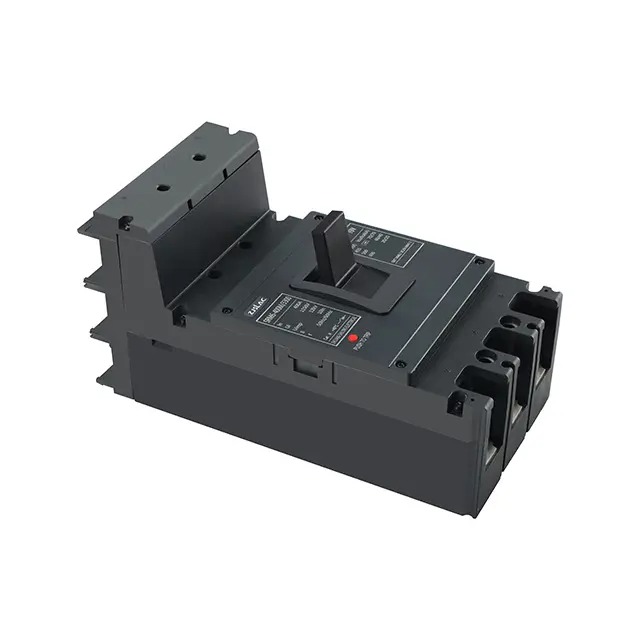

An MCCB (Molded Case Circuit Breaker) is a type of electrical protection device used to automatically interrupt current flow in a circuit during overloads or faults. Unlike smaller circuit breakers like MCBs (Miniature Circuit Breakers), MCCBs are designed for higher current capacities—often ranging from 15A up to 2500A. The "molded case" refers to the durable plastic housing that encapsulates the internal components, protecting them from dust, moisture, and mechanical damage.
At its core, the MCCB combines thermal and magnetic trip mechanisms:
Thermal trip units protect against prolonged overloads using a bimetallic strip that bends and trips the breaker when heated.
Magnetic trip units respond to sudden surges or short circuits by activating an electromagnetic coil.
These two mechanisms work together to provide a comprehensive layer of defense against various electrical faults, ensuring system stability and safety.
When managing large-scale or commercial electrical systems, choosing the right circuit protection is more than a safety measure—it’s a strategic decision. MCCBs offer several key benefits that make them indispensable in advanced installations:
High Current Ratings
MCCBs can handle large loads, often necessary in industrial machinery, HVAC systems, and large motors.
Adjustable Trip Settings
Many MCCBs allow users to adjust the trip threshold, enabling customization based on specific circuit demands.
Robust Construction
Built to withstand harsh environmental conditions, MCCBs are suitable for outdoor panels, generator control panels, and construction sites.
Remote Operation and Monitoring
Some advanced models come with remote operation or monitoring capability, making them ideal for integration into smart electrical systems.
Longevity and Reliability
Designed for multiple operations, MCCBs exhibit high mechanical and electrical endurance.
Because of these benefits, MCCBs are not just protective devices—they are strategic assets in optimizing and safeguarding the power flow in diverse applications.
The decision to use an MCCB depends on several factors including the current load, system complexity, environmental conditions, and the criticality of the application. Here are the most common scenarios where MCCBs are not just preferred, but essential:
In large manufacturing plants, machines often draw high startup currents and require robust protection. MCCBs can handle these demanding loads while ensuring minimal downtime in case of faults.
From office complexes to shopping malls, MCCBs protect HVAC units, elevators, and centralized lighting systems that operate with high voltage and current ratings.
Backup generators and power transformers need breakers that can handle high fault currents. MCCBs provide this protection without compromising system stability.
In large electrical networks, MCCBs are used to protect subpanels or feeder lines, effectively compartmentalizing risk and preventing widespread outages.
Modern solar and wind installations use MCCBs to ensure consistent performance and safety, especially under varying load conditions.
When choosing an MCCB, several technical factors must be considered. The table below provides a quick reference guide to some of the key parameters typically evaluated:
| Specification | Description |
|---|---|
| Rated Current (In) | Current rating (e.g., 100A, 250A, 630A) depending on load requirements |
| Breaking Capacity (Icu) | Maximum fault current the MCCB can safely interrupt (e.g., 25kA, 50kA) |
| Number of Poles | 1P, 2P, 3P, or 4P based on single-phase or three-phase use |
| Trip Mechanism | Thermal-magnetic or electronic |
| Mounting Style | Fixed, plug-in, or draw-out types for different panel configurations |
| Standards Compliance | IEC 60947-2, UL489, GB14048.2, etc. |
| Frame Size | Defines the maximum current rating and physical dimensions |
| Accessories | Auxiliary contacts, shunt trip, under-voltage release, etc. |
Choosing an MCCB based on these specifications ensures that it is not only compatible but also optimized for your unique electrical environment.
Although both MCCBs and MCBs serve the same fundamental purpose—protecting circuits from electrical faults—they are designed for different scale and intensity of applications.
| Feature | MCB | MCCB |
|---|---|---|
| Current Rating | Up to 100A | Up to 2500A |
| Trip Settings | Fixed | Adjustable |
| Application | Residential, small commercial use | Industrial, large commercial, utility |
| Fault Tolerance | Moderate | High (withstand higher short circuit currents) |
| Size | Compact | Larger, heavier, more durable |
| Cost | Lower | Higher (due to advanced features) |
In essence, if you're managing high-voltage, high-load environments, or mission-critical systems, the MCCB is your go-to solution.
A: While technically possible, MCCBs are over-specified for most home applications. An MCB is typically more suitable for residential loads unless dealing with high-capacity circuits like EV chargers or home generators.
A: It is recommended to perform annual inspection and thermal imaging. MCCBs used in critical infrastructure should be tested semi-annually for mechanical integrity and trip response.
A: Frequent tripping may result from:
Overloaded circuits
Ground faults
Short circuits
Loose connections
Diagnosing the root cause is essential before resetting the breaker.
A: Yes, most modern MCCBs are designed for flexible mounting. However, always consult the manufacturer’s installation manual for orientation guidelines.
A: MCCBs are built for durability and often rated for 10,000 mechanical operations and up to 2,000 electrical operations under full load, depending on the model and manufacturer.
In today’s power-intensive world, electrical safety and efficiency go hand in hand. The MCCB stands out as a high-performance solution, especially in scenarios where high current, frequent operation, and environmental challenges are at play. Whether you’re setting up a distribution panel in a high-rise building, managing the energy needs of a factory, or ensuring generator reliability, the MCCB delivers uncompromising protection and performance.
