SRM3RT-160S
ZJSLAC

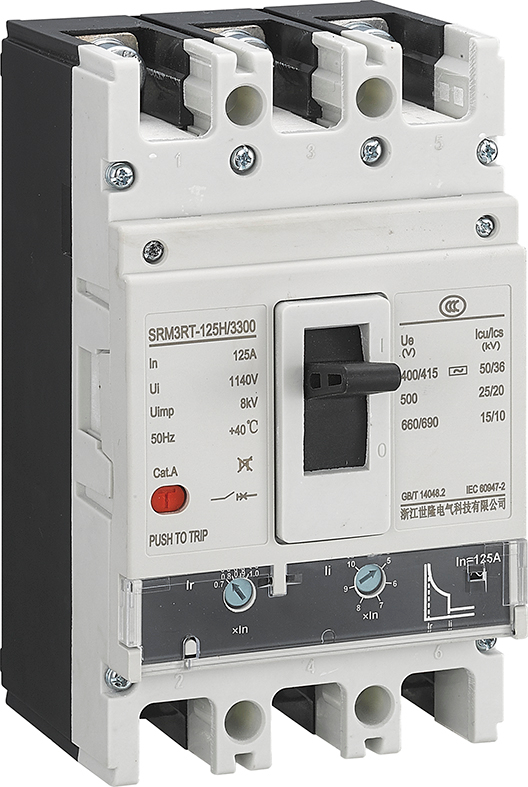

Introducing the TM Adjustable Molded Case Circuit Breaker, a reliable and efficient solution for your electrical protection needs. This high-quality circuit breaker is designed to provide adjustable protection for various applications, ensuring the safety and reliability of your electrical systems. With its durable construction and advanced features, the TM Adjustable Molded Case Circuit Breaker is the ideal choice for professionals seeking top-notch performance and peace of mind. Trust in this product to safeguard your electrical equipment and maintain optimal functionality.
Model | SRM3RT-125/160 | SRM3RT-2501320 | SRM3RT-400/630 | SRM3RT-630/800/12501600 | |||||||||
Frame grade rated current Inm(A) | 160 | 250 | 400 | 1600 | |||||||||
Poles | 3.4 | 3,4 | 3,4 | 3.4 | |||||||||
Rated curent In(A) | SRM3RT-125:In=10,16,20,25,32, 40,50,63,80,100,125A | SRM3RT-250:In=100,125.140,160, 180,200,225,250A | SRM3RT-400 In=225,250,315,350, 400A | SRM3RT-630:In=400,500,630A | |||||||||
SRM3RT-800:In=700,800A | |||||||||||||
SRM3RT-160:In=10,16,20,25,32, 40,50.63.80.100.125.140.160A | SRM3RT-320:In=280,300,315,320A | SRM3RT-630:In=400,500,630A | SRM3RT-1250:In=800,900,1000,1250 | ||||||||||
SRM3RT-1600A:In=1250,1600A | |||||||||||||
Rated operational voltage Ue(V) | AC400V1415V/500V/660V/690V | ||||||||||||
Rated insulation voltage Ui(V) | 1140 | ||||||||||||
Rated impulse withstand voltage Uimp(KV) | 8 | 8 | 12 | 12 | |||||||||
Breaking capacity code | S | H | R | S | H | R | S | H | R | S | H | R | |
Rated operating short- circuit breaking capacity Ics(kA) | AC400V1415V | 25 | 36 | 50 | 25 | 36 | 50 | 36 | 50 | 75 | 36 | 50 | 75 |
AC500V | 20 | 20 | 20 | 20 | 20 | 20 | 25 | 36 | 50 | 25 | 36 | 50 | |
AC660V/690V | 10 | 10 | 15 | 10 | 10 | 15 | 10 | 15 | 20 | 10 | 15 | 20 | |
Rated ultimate short- circuit breaking capacity lcu(kA) | AC400V₁415V | 36 | 50 | 75 | 36 | 50 | 75 | 50 | 75 | 100 | 50 | 75 | 100 |
AC500V | 25 | 25 | 25 | 25 | 25 | 25 | 36 | 50 | 75 | 36 | 50 | 75 | |
AC660V/690V | 15 | 15 | 20 | 15 | 15 | 20 | 15 | 20 | 25 | 15 | 20 | 25 | |
Selective category | A | ||||||||||||
Number of operation cycles | Power on | 6000 | 3000 | 3000 | 1500 | ||||||||
Not powered on | 9000 | 7000 | 7000 | 4000 | |||||||||
Overcurrent trip device type | Thermomagnetic type (adjustable,0.7-1.0In adjustable) | ||||||||||||
Accessory | Auxiliary contacts,alarm contacts,shunt trip unit,undervoltage tip,manual operating mechanism,electric operating mechanism | ||||||||||||
