Electrical accidents in industrial settings often result in more than just temporary downtime—they can lead to equipment damage, financial losses, or even endanger human life. To mitigate these risks, reliable protection systems must be in place, especially in high-current, high-voltage environments where safety cannot be compromised. A molded case circuit breaker (MCCB) serves as one of the most dependable protective components in industrial electrical systems, helping to ensure electrical safety under varying and demanding conditions. This article outlines how MCCBs contribute to accident prevention, system longevity, and compliance with industrial safety standards.
Industrial environments operate with complex electrical infrastructures—large-scale machinery, extensive wiring systems, and varying load demands all increase the risk of electrical hazards. Below are some of the most common threats found in such systems:
When electrical circuits are forced to carry more current than they are designed to handle, overheating occurs. This overload can result in melted insulation, fire hazards, or damage to motors and transformers. In industrial operations where machines run continuously, overloads are common, especially during peak operational hours or in systems with poor load management.
Short circuits pose immediate and significant dangers. They occur when current bypasses its intended path due to insulation failure or damaged wiring, creating a low-resistance pathway. The resulting current spike can destroy components in milliseconds. Arc faults, a related hazard, involve high-energy electrical discharges between conductors, which can reach temperatures of over 10,000°C and cause devastating fires.
A ground fault happens when current flows from a live conductor directly to the ground or grounded surface. In industrial settings, this can result from moisture, poor insulation, or equipment wear. Ground faults not only damage systems but can also endanger personnel, especially if ground-fault protection isn't present. Long-term exposure to abnormal heat buildup—due to continuous operation or undetected minor faults—also leads to degradation of system components.
All of the above hazards point to one conclusion: robust fault detection and interruption systems are essential. Prevention must be automated and reliable. That’s where molded case circuit breakers prove invaluable, as they’re designed specifically to respond to these issues before they spiral into serious failures.

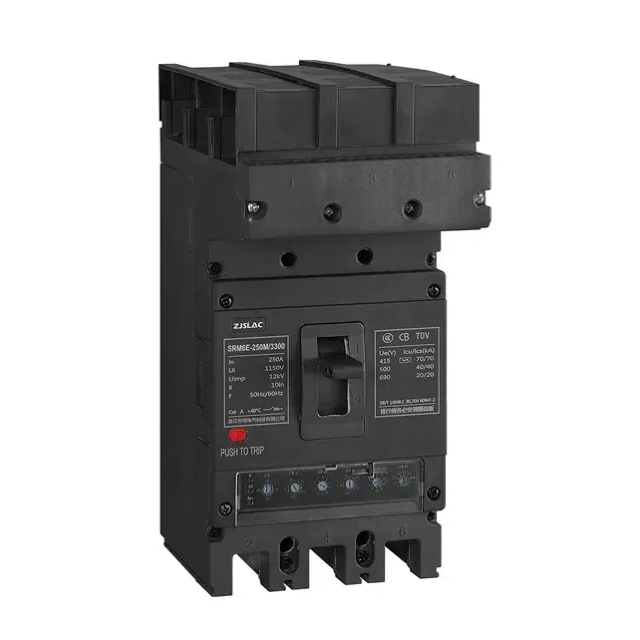

Modern MCCBs offer more than just basic protection. Their structure and technology are optimized for high-performance industrial applications. Products like those from Zhejiang Shilong Electric Technology Co., Ltd. are engineered for extreme reliability and safety.
One of the key strengths of a molded case circuit breaker lies in its high breaking capacity. In fault conditions, such as short circuits or severe overloads, MCCBs can safely interrupt fault currents up to 50kA. This capability ensures that dangerous fault energy does not propagate through the system, avoiding cascading equipment failures or fires.
Most MCCBs use a combination of thermal and magnetic trip mechanisms. The thermal part responds to slow, long-term overcurrents by bending a bimetallic strip, while the magnetic component reacts instantly to sudden surges. This dual-layer protection addresses both persistent overloads and fast-developing faults like short circuits or arcs.
More advanced MCCBs now feature electronic trip units that provide adjustable settings for long delay, short delay, instantaneous, and ground fault protection. This fine-tuning ensures protection aligns with the system's characteristics and enhances selectivity, reducing nuisance trips and improving uptime.
Zhejiang Shilong MCCBs support applications with voltages up to 1500V DC and 1140V AC, making them suitable for high-voltage equipment such as transformers, photovoltaic installations, or electric vehicle chargers. Their high insulation strength and surge withstand capability protect sensitive devices from transient spikes and overvoltages, ensuring continuity and safety.
MCCBs are often compared with miniature circuit breakers (MCBs) and fuses. Each has its place, but MCCBs offer distinct advantages when safety and operational continuity are critical.
MCBs, though effective in low-voltage residential or office setups, are not designed for high current or complex industrial demands. MCCBs, by contrast, can handle currents ranging from 63A to 600A, making them ideal for use in factories, renewable energy systems, and data centers.
Unlike fuses, which melt upon overload and require replacement, MCCBs are resettable. Once the fault is cleared, the breaker can be turned back on without swapping components. This drastically reduces downtime and maintenance costs. Some models from Shilong also offer motorized operation, which allows for remote resetting—a useful feature in inaccessible installations.
Industrial environments are often harsh, with exposure to moisture, salt fog, and dust. Zhejiang Shilong MCCBs are available in versions with triple protection—resistant to moisture, mold, and salt spray—making them ideal for maritime, desert, and chemical plant environments where corrosion or contamination is a major concern.
Proper usage of MCCBs begins with correct installation and continues with ongoing maintenance. Neglecting either can compromise safety, no matter how well-engineered the breaker is.
It’s important to match the rated current, voltage level, and number of poles with your actual system requirements. Zhejiang Shilong offers a full range of options including 2P, 3P, and 4P MCCBs for both DC and AC environments. Their busbar-type MCCBs, for example, are ideal for compact panel systems and have been awarded patents for their innovative structure.
Install MCCBs in secure, moisture-proof enclosures, such as IP-rated waterproof boxes, especially in outdoor or humid locations. Ensure all terminal connections are tightened to the specified torque values and that wiring is appropriately sized. Avoid mounting near heat sources or vibration zones to preserve calibration accuracy.
While MCCBs are often considered maintenance-free, regular inspection is strongly advised. Clean dust from vents and terminal areas, check for signs of wear or overheating, and verify that trip units are functioning as expected. Keeping MCCBs clean and properly sealed not only improves reliability but also ensures compliance with warranty terms and safety regulations.
For today’s demanding industrial systems, the molded case circuit breaker is more than just a protective switch—it’s a frontline defense mechanism. By quickly responding to faults, enduring high current loads, and offering advanced adjustability, MCCBs significantly reduce the risk of fire, equipment damage, and unexpected downtime. Compared to other protective devices, they offer longer service life, intelligent functionality, and adaptability to extreme conditions.
At Zhejiang Shilong Electric Technology Co., Ltd., we specialize in manufacturing high-performance MCCBs that meet the needs of global industries. Whether you require robust circuit protection for photovoltaic systems, heavy machinery, or advanced power distribution networks, our molded case circuit breakers are engineered to deliver lasting safety and reliability.
Contact us today to discover the right molded case circuit breaker solution for your application and ensure your system operates at the highest level of safety and efficiency.
